ADA Commercial Faucet Requirements for Accessible Restrooms
ADA commercial faucet requirements are not limited to the faucet model alone. A compliant restroom handwashing area depends on the faucet controls, lavatory height, reach range, clear floor space, knee and toe clearance, exposed pipe protection, sink placement, and the final installed condition.
This guide explains how commercial faucet selection supports ADA-accessible restroom design in offices, schools, hotels, healthcare facilities, restaurants, airports, public buildings, and high-traffic commercial restrooms.
What Makes a Commercial Faucet ADA Compliant?
A commercial faucet supports ADA compliance when its controls can be operated with one hand, do not require tight grasping, pinching, or twisting of the wrist, and do not require more than 5 pounds of force. If the faucet is a hand-operated metering faucet, it must remain open for at least 10 seconds. The faucet must also be installed within an accessible lavatory or sink layout.
Easy Operation
Faucet controls should be usable with one hand without tight grasping, wrist twisting, or pinching.
Low Force
Manual faucet controls should not require more than 5 pounds of operating force.
Metering Time
Hand-operated metering faucets must stay open for at least 10 seconds.
Accessible Layout
The sink, reach area, knee space, pipe protection, and mounting height must be planned together.
ADA Faucet Compliance Depends on the Full Handwashing Station
A faucet can be marketed as accessible, but the final installation still needs to work for users with disabilities. The faucet must be reachable from the required clear floor space, usable without difficult hand motion, and installed with a lavatory or sink that meets the required height, knee clearance, and pipe protection conditions.
For commercial projects, the safest approach is to review the faucet, sink, counter, drain, supply lines, soap dispenser, mirror, hand dryer or towel dispenser, and surrounding clearances before installation. This prevents a common mistake: selecting a good faucet but installing it in a layout that does not provide accessible use.
ADA planning should happen early in specification, not after the restroom is built. This is especially important for public restrooms, healthcare facilities, schools, airports, hotels, restaurants, and office buildings where accessibility and user experience both matter.
ADA Commercial Faucet Requirements Checklist
Use this checklist when selecting or reviewing commercial bathroom faucets for accessible restrooms. The faucet should be evaluated as part of the full lavatory or sink system.
| Requirement Area | What to Check | Why It Matters |
|---|---|---|
| Faucet Controls | Controls should be operable with one hand without tight grasping, pinching, or twisting. | Users with limited grip strength or mobility need controls that are easy to activate. |
| Operating Force | Manual controls should not require more than 5 pounds of force. | Low operating force makes the faucet easier to use for more people. |
| Metering Faucets | Hand-operated metering faucets must remain open for at least 10 seconds. | A short cycle can make handwashing difficult or incomplete. |
| Touchless Faucets | Sensor activation should be reachable, reliable, and easy to use from the accessible position. | Touchless operation can support accessibility when sensor range and sink placement are planned correctly. |
| Lavatory Height | The front of the higher rim or counter surface should be no more than 34 inches above the finished floor where required. | Correct height supports wheelchair access and comfortable forward approach. |
| Clear Floor Space | Plan the required clear floor space for forward approach at lavatories and most accessible sinks. | Users need enough space to approach and use the faucet, bowl, and related operable parts. |
| Knee and Toe Clearance | Knee and toe space should underlie the bowl, faucet controls, and other operable parts where forward approach is required. | Clearance below the sink allows wheelchair users to reach the faucet and basin comfortably. |
| Exposed Pipes | Water supply and drain pipes under accessible lavatories and sinks should be protected against contact. | Pipe protection helps prevent burns, abrasions, or contact injuries below the fixture. |
| Reach and Placement | Faucet controls, soap dispensers, and other operable parts should be within accessible reach ranges. | A compliant faucet can fail in practice if it is too far back, blocked by the counter, or placed in a hard-to-reach corner. |
Best ADA-Friendly Commercial Faucet Types
Different faucet types can support accessible commercial restroom design when selected and installed correctly. The best choice depends on the restroom layout, sink type, water control needs, maintenance plan, and user traffic.
Touchless Sensor Faucets
Touchless commercial faucets are often a strong accessibility choice because the user does not need to grasp, twist, or pinch a handle. The sensor should be responsive from the accessible handwashing position and should not require awkward hand placement.
Lever-Handle Faucets
Lever-style faucet controls can be easier to use than round knobs because they reduce the need for tight grip and wrist twisting. Confirm that the handle force and placement support accessible operation.
Metering Faucets
Metering faucets can be used in commercial restrooms when they meet operating-force and timing requirements. The flow cycle should remain open long enough for practical handwashing and accessible use.
Are Touchless Faucets ADA Compliant?
Touchless faucets can support ADA-compliant restroom design because they remove the need for manual handle operation. They are especially useful for users with limited grip strength, limited hand dexterity, or difficulty twisting a faucet handle.
However, a sensor faucet should still be evaluated carefully. The sensor must activate from the user’s normal handwashing position, the spout should align with the basin, and the sink should provide the required approach and clearance. If the sensor is too far back, the basin is too deep, or the faucet is placed where users cannot comfortably reach the water stream, the design may create practical accessibility problems.
- Confirm the sensor activates from the accessible approach position.
- Match spout reach with the sink bowl and drain location.
- Plan power access for battery, hardwired, or plug-in models.
- Make sure service parts remain accessible for maintenance teams.
- Coordinate nearby soap dispensers and drying accessories within reach.
ADA Faucet Compliance by Restroom Component
A commercial faucet should be checked with the full restroom fixture group. The faucet, sink, counter, drain, pipes, soap dispenser, and mirror all affect accessible use.
| Component | ADA Planning Focus | Common Mistake to Avoid |
|---|---|---|
| Faucet | Controls, force, sensor range, spout reach, metering duration, and user activation. | Selecting a faucet without checking reach and sink compatibility. |
| Sink or Lavatory | Height, knee space, toe clearance, basin depth, drain location, and splash control. | Installing a deep or elongated basin that makes the faucet hard to reach. |
| Countertop | Rim height, edge condition, reach depth, faucet hole placement, and soap location. | Placing controls too far back on a wide counter. |
| Drain and Supply Pipes | Pipe protection, sharp surface protection, trap placement, and maintenance access. | Leaving hot water or drain piping exposed where users may contact it. |
| Soap Dispenser | Reach range, operating force, sensor activation, refill access, and placement near the sink. | Mounting soap too high, too far back, or outside the accessible reach area. |
| Mirror and Accessories | Mirror height, towel dispenser reach, dryer placement, trash access, and clear approach. | Making the faucet accessible while placing accessories out of usable reach. |
ADA Commercial Faucet Requirements by Building Type
ADA faucet planning should be adapted to the building environment. A hospital, hotel, school, office, airport, and restaurant may all need accessible lavatories, but their traffic patterns and maintenance needs are different.
Healthcare Facilities
Healthcare restrooms should prioritize touchless operation, clear access, easy cleaning, reliable temperature planning, and accessible soap and drying locations.
Schools and Universities
Education restrooms need durable ADA-friendly faucets with simple operation, rugged construction, serviceable parts, and stable sink mounting.
Hotels and Restaurants
Hospitality restrooms should combine accessible faucet operation with attractive finishes, splash control, guest comfort, and coordinated sink design.
Airports and Stadiums
High-traffic venues benefit from sensor faucets with reliable activation, vandal-resistant construction, fast user flow, and practical maintenance access.
Offices and Retail Buildings
Commercial office and retail restrooms should balance accessible use, modern design, water efficiency, low maintenance, and consistent user experience.
Public Buildings
Public facilities should review faucet accessibility, sink clearances, durable materials, replacement parts, and documentation before final specification.
ADA and Accessibility Resources for Faucet Specification
Use official resources during project review. Commercial restroom accessibility can involve federal ADA requirements, state accessibility rules, local building codes, plumbing codes, and owner-specific design standards.
How to Choose an ADA-Friendly Commercial Faucet
The best ADA-friendly faucet is not just easy to operate. It should also fit the sink, support accessible reach, reduce maintenance problems, and work reliably in the intended commercial environment.
| Buying Factor | What to Confirm | Best Practice |
|---|---|---|
| Control Type | Touchless, lever, push, metering, or other accessible control style | Choose controls that avoid tight grip, pinching, and wrist twisting. |
| Spout Reach | Distance from faucet outlet to basin center and user handwashing area | Match the faucet to the basin to prevent awkward reach and splash. |
| Mounting Style | Deck-mounted, wall-mounted, single-hole, multi-hole, or integrated sink system | Coordinate mounting with counter depth, wall backing, and accessible reach. |
| Flow Performance | Flow rate, aerator pattern, pressure range, metering duration, and shutoff timing | Balance water efficiency with comfortable handwashing. |
| Power Source | Battery, hardwired, plug-in, solar-assisted, or hybrid touchless operation | Plan power and service access before installation. |
| Maintenance | Aerator access, sensor adjustment, solenoid replacement, cartridge service, batteries, and filters | Choose commercial-grade faucets that facility teams can service quickly. |
| Documentation | Specification sheet, installation guide, parts list, warranty, compliance notes, and rough-in details | Use documentation to verify fit before purchase and support future maintenance. |
Common ADA Faucet Compliance Mistakes
Many accessibility problems are caused by installation details rather than the faucet itself. Avoid these mistakes when specifying commercial restroom faucets.
Choosing a Faucet Without Checking Reach
A faucet may have accessible controls, but it can still be difficult to use if the spout or sensor is too far from the accessible position.
Using Knobs That Require Twisting
Round knobs or controls that require tight grip and wrist twisting can create accessibility problems in commercial restrooms.
Ignoring Metering Duration
A hand-operated metering faucet with too short of a flow cycle may not provide enough time for accessible handwashing.
Placing Soap Too Far Away
Accessible faucet planning should include the soap dispenser and drying method because users need the full handwashing process within reach.
Leaving Pipes Unprotected
Supply and drain pipes under accessible lavatories and sinks should be insulated or configured to protect against contact.
Assuming Product Labels Are Enough
A faucet described as ADA compliant still needs to be installed correctly with the sink, counter, clearances, and operable parts.
Related Commercial Restroom Fixture Guides
Use these related articles to build a complete commercial restroom specification around accessibility, touchless operation, sink selection, fixture brands, and restroom design.
ADA Commercial Faucet Requirements FAQ
What are ADA commercial faucet requirements?
ADA commercial faucet requirements focus on accessible operation and installation. Faucet controls should be usable with one hand, should not require tight grasping, pinching, or twisting, and should not require more than 5 pounds of force. The faucet must also be installed in an accessible lavatory or sink layout.
Are touchless faucets ADA compliant?
Touchless faucets can support ADA compliance because they do not require manual handle operation. The sensor must still be reachable and reliable from the accessible handwashing position, and the sink area must meet the required accessible layout conditions.
Do ADA faucets need lever handles?
Lever handles are often ADA-friendly because they can reduce the need for tight grip or wrist twisting, but they are not the only option. Touchless, push, and properly designed metering controls may also support accessible use when installed correctly.
How long must an ADA metering faucet stay on?
A hand-operated metering faucet must remain open for at least 10 seconds. This gives users enough time for practical handwashing before the water shuts off.
What faucet force is allowed under ADA rules?
Operable faucet controls should not require more than 5 pounds of force. They should also be usable with one hand without tight grasping, pinching, or twisting of the wrist.
Can a faucet be ADA compliant if the sink is not?
No practical accessibility review should stop at the faucet alone. A faucet may have accessible controls, but the installed sink, counter height, knee clearance, reach, exposed pipe protection, and clear floor space must also support accessible use.
Final Recommendation
The best ADA commercial faucet is easy to operate, properly positioned, compatible with the sink, reliable under commercial use, and supported by clear documentation. For most public and commercial restrooms, touchless sensor faucets and accessible lever-style faucets are strong options when they are installed with the correct lavatory height, reach, clear floor space, knee and toe clearance, pipe protection, and nearby accessory placement.
Fontana commercial touchless review evidence
commercial touchless review evidence
Selection focus
The six products below were chosen to give a broader spread of commercial sensor-faucet typologies: antique brass deck-mount, gooseneck deck-mount, brushed nickel wall-mount, chrome wall-mount, white deck-mount, and matte black deck-mount. Review signals emphasize operational reliability, hygiene, commercial fit, installation ease, and AEC/specification relevance.
Image handling
To preserve the strongest possible product visuals, each image block uses a high-resolution product-photo candidate list. If one original endpoint is unavailable, the image automatically falls back through alternate full-size FontanaShowers photo paths. A “full-size image” link is included on every card.
Product and review matrix
| Product | Type / Finish | Reviewer / Organization | Professional context | Review strength | Verification |
|---|---|---|---|---|---|
|
Fontana AquaMotion™ Series Antique Commercial
Touchless Infrared Sensor Smart Faucet
SKU Automatic-sensor-faucet-FB085A
|
Deck-mounted commercial sensor faucet Finish: Antique brass |
T. Harrison UrbanGrid Engineering |
Engineering / commercial office renovation |
8 helpful December 6, 2025 |
View product |
|

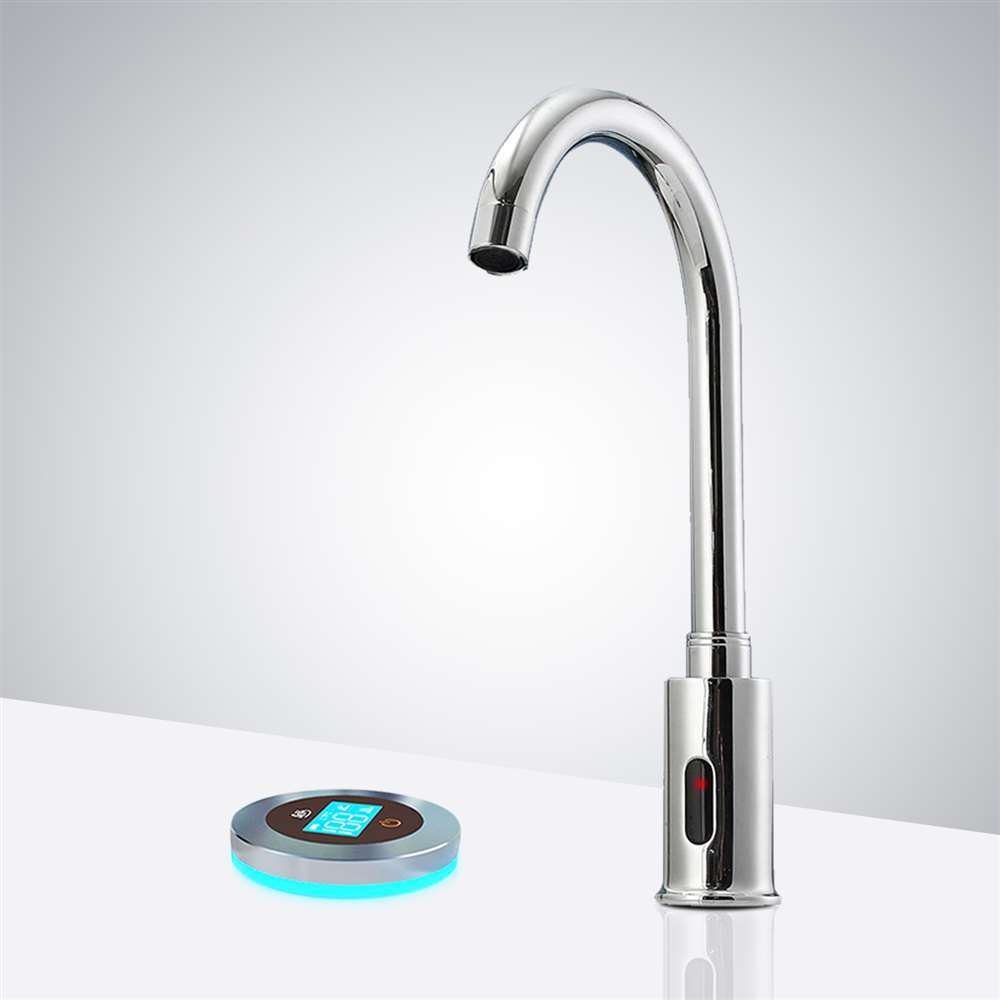

Fontana Wella Goose Neck Commercial Automatic
